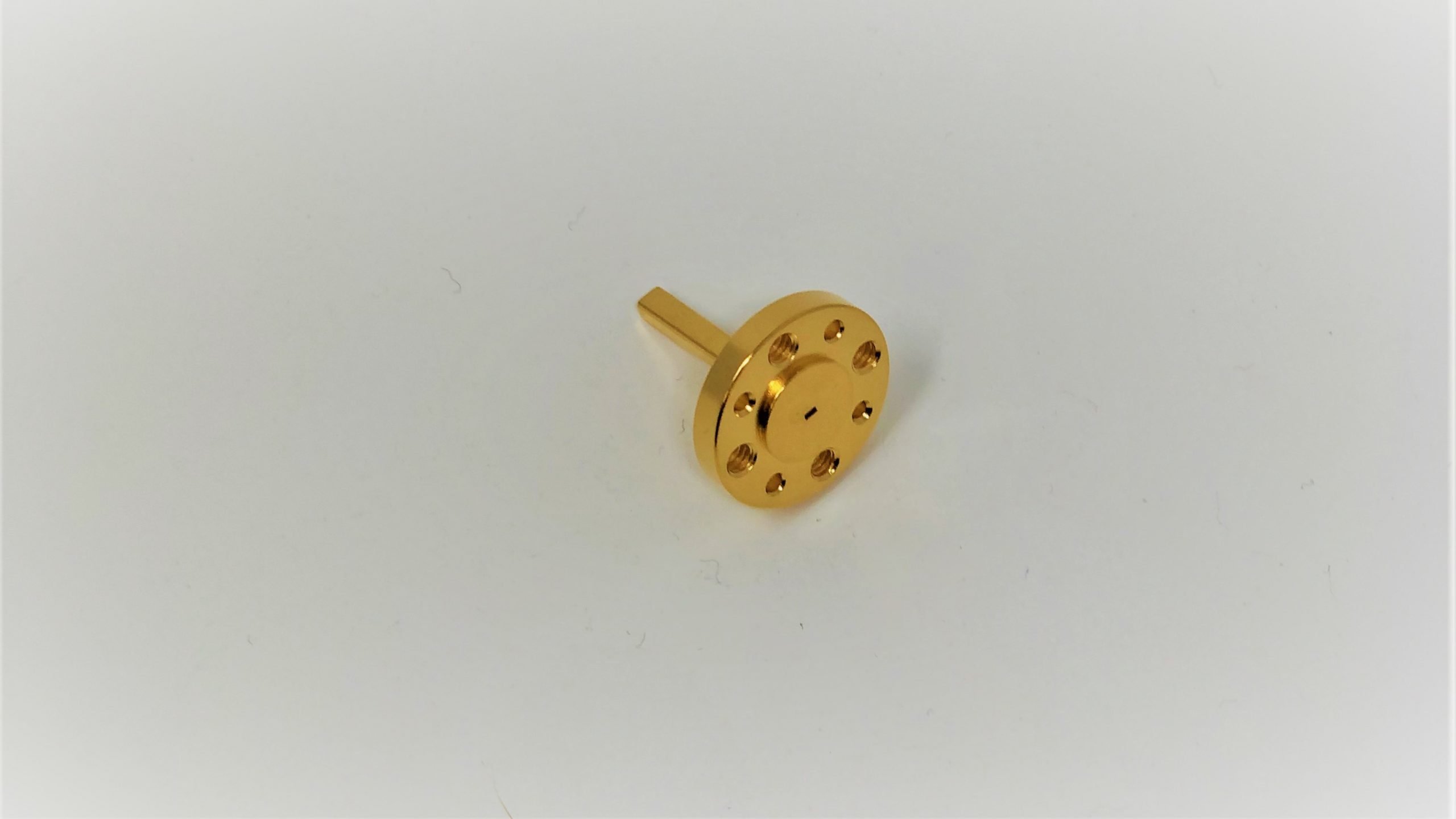

J-Band Waveguide Probe Antennas

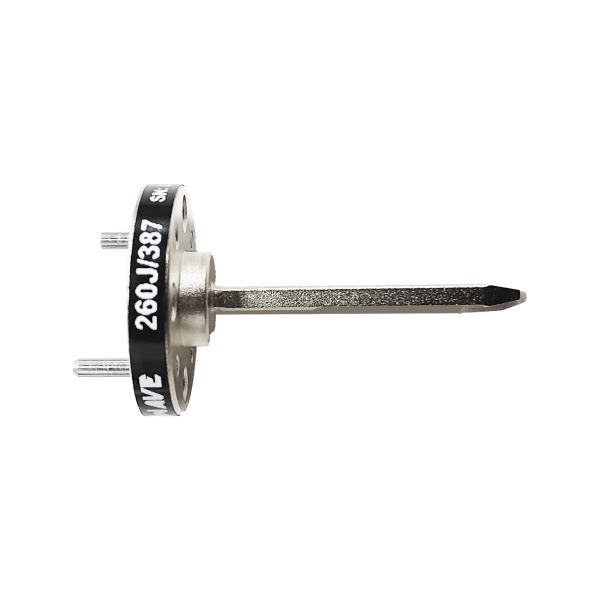

260J/387, 220GHz – 325GHz WR-03, UG-387/U-M

Description:

Mi-Wave’s 260 Series Waveguide Probe Antennas are used in a wide variety of applications due to their high power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. Mi-wave’s probe antennas offer operating frequencies from 8.2-500 GHz. These antennas offer a low gain variation across their operating frequency.

• N257 Band – 26.5 to 29.5 GHz
• N258 Band – 24.25 to 27.5
• N259 Band – 39.5 to 43.5
• N260 Band – 37.0 to 40.0
• N261 Band – 27.5 to 28.35

• 45.5 to 52.6 GHz
• 57.0 to 66.0 GHz
• 66.0 to 71.0 GHz
• 95.0 to 110.0 GHz

Outline Drawing
Test Data
Beamwidth Pattern and Plot Data
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
