Ku-Band Waveguide Horn Lens Antenna

258Ku-12/.XXX/419 12.4 GHz – 18 GHz Circular Waveguide with UG-419/U Flange

Description:

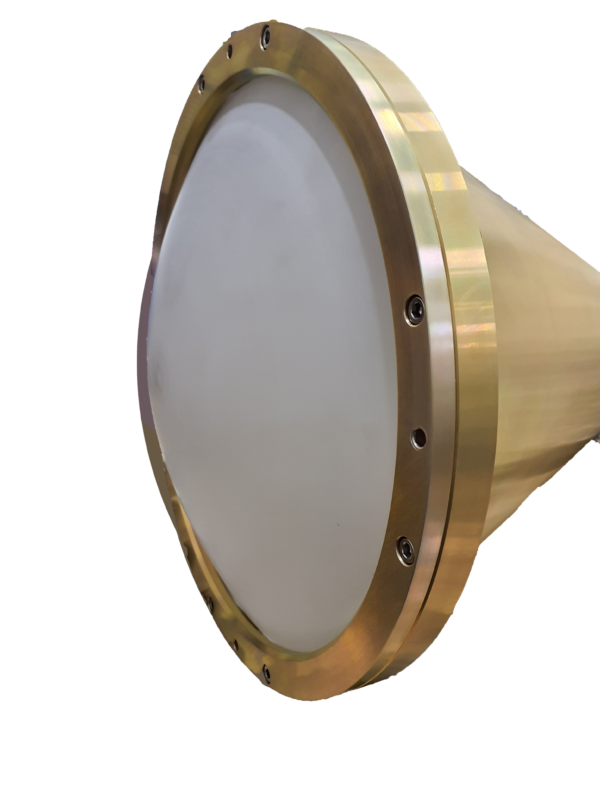

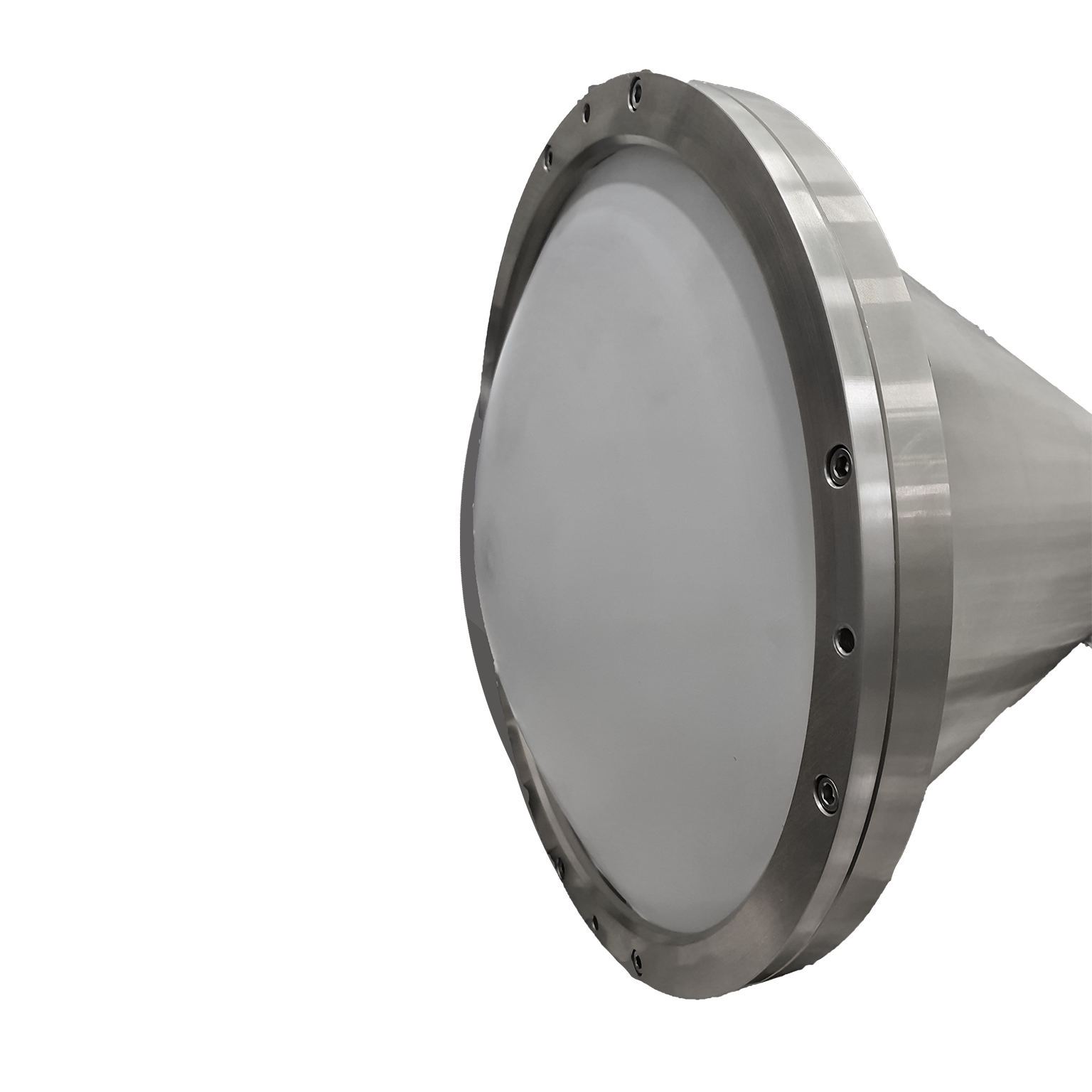

Mi-Wave’s 258 Series horn lens antenna consists of a circular scalar feed horn illuminating a piano-convex lens. Housed in either aluminum or plastic, these horn lens antennas provide a high-efficiency beam with equal E and H plane amplitude patterns.

Circular Waveguide Internal Diameter and Frequency Range

XXX=.660 = 12.4-14.6 GHz
XXX=.550 = 14.6-18 GHz

Features

• Low Cost

• High Directivity and Gain

• Simple Mechanical Performance

• Wide Range of Available Beamwidths and Reflector Size

Applications

• Radar & Telemetry Systems

• Radio Astronomy

• Surveillance Equipment

• Communication Systems

Outline Drawing – 12″
Plot Data – ID .550
Plot Data – ID .660
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
