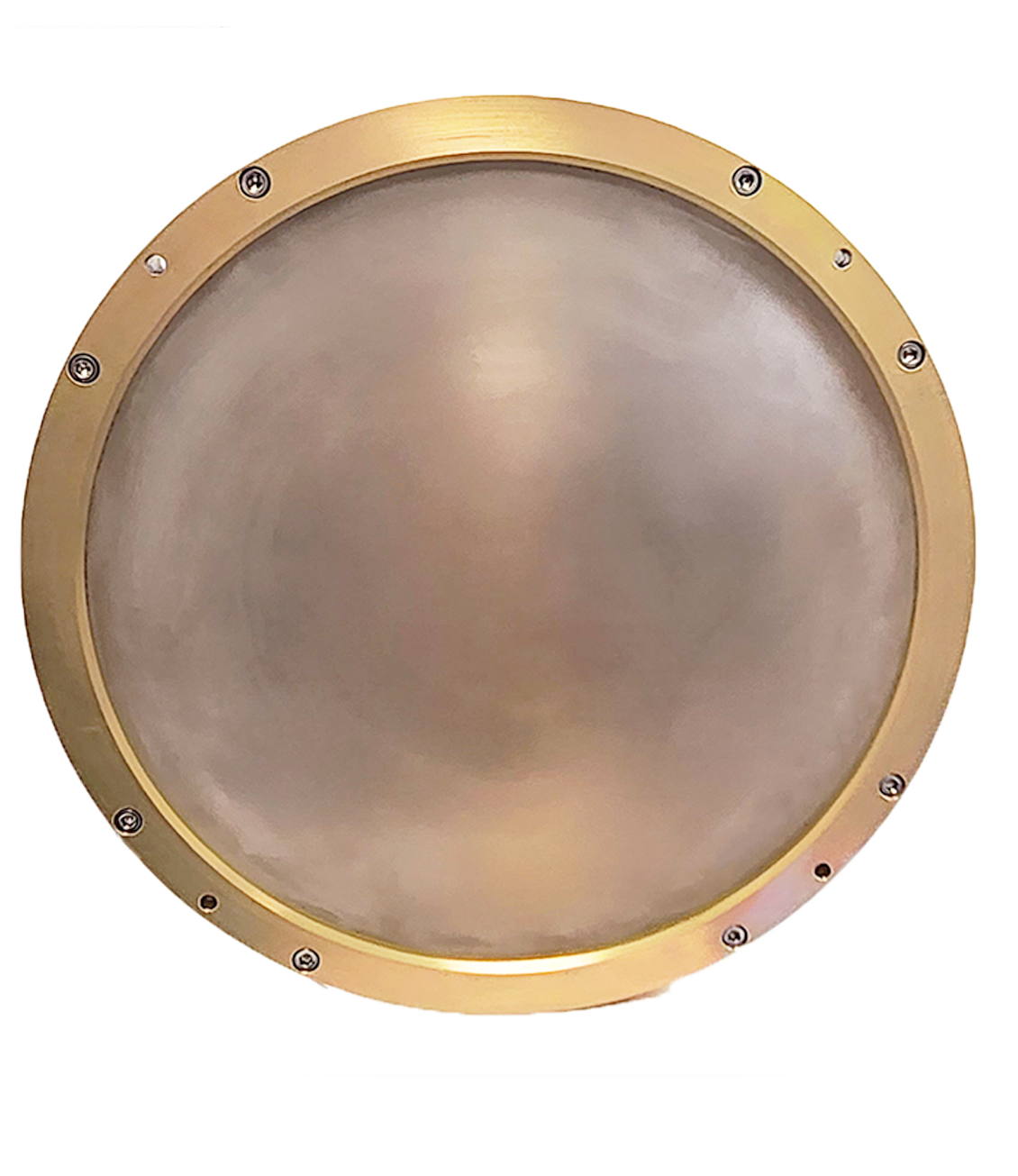

U-Band Waveguide Horn Lens Antenna

258U-12/.XXX/383 38.5 GHz – 60.0 GHz Circular Waveguide with UG-383/U-M Flange

Description:

Mi-Wave’s 258 Series horn lens antenna consists of a circular scalar feed horn illuminating a piano-convex lens. Housed in either aluminum or plastic, these horn lens antennas provide a high-efficiency beam with equal E and H plane amplitude patterns.

Circular Waveguide Internal Diameter and Frequency Range

XXX=.219 = 38.5-43.0 GHz
XXX=.188 = 43.0-50.0 GHz
XXX=.165 = 50.0-58.0 GHz
XXX=.141 = 58.0-60.0 GHz

Features

• Low Cost

• High Directivity and Gain

• Simple Mechanical Performance

• Wide Range of Available Beamwidths and Reflector Size

Applications

• Radar & Telemetry Systems

• Radio Astronomy

• Surveillance Equipment

• Communication Systems

*All data presented is collected from a sample lot.

* Actual data may vary unit to unit, slightly.

*All testing was performed under +25 °C case temperature.

*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.

*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
