410(75)/SMAF, Insertion Loss 0.3 dB, VSWR 1.5:1, Power Handling 20W

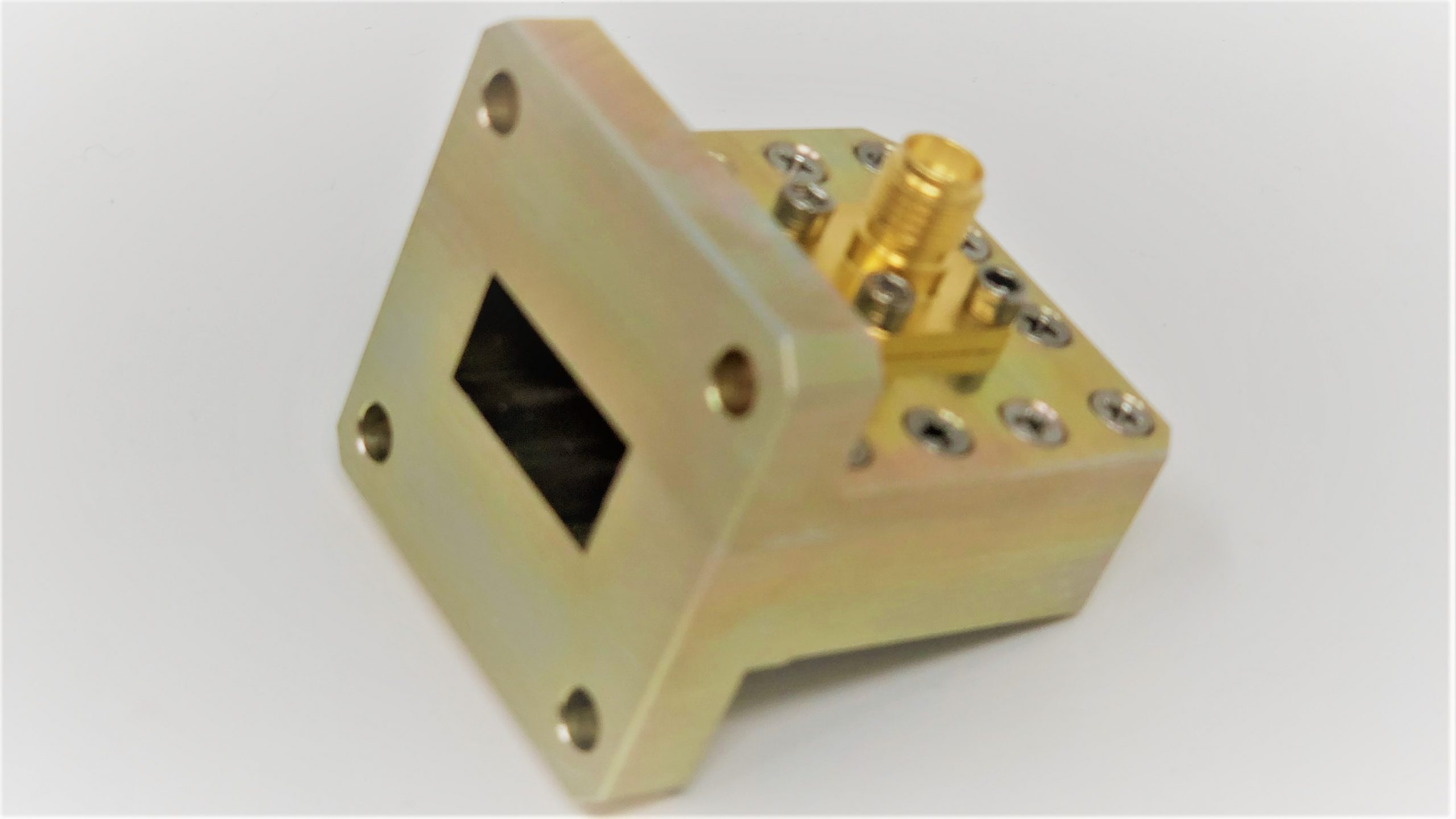

WR-75 Coax to Waveguide Right Angle Adapter

Description:

Mi-Wave’s 410 Series Waveguide to Coax Adapter allows an efficient method of adapting from a rectangular waveguide to a coaxial connector. Full waveguide bands are available from 8.2 to 110 GHz. Low insertion losses and VSWR’s are typical for this waveguide to coax adapters. Low-cost production versions are available for equipment used and OEM’s. Laboratory grades are also offered on some models. Our coax to waveguide adapters meet the needs of communications equipment and are some of the best waveguide transition adapters in the market today.

Note: Consult with the factory for a custom frequency band type.

• N257 Band – 26.5 to 29.5 GHz
• N258 Band – 24.25 to 27.5
• N259 Band – 39.5 to 43.5
• N260 Band – 37.0 to 40.0
• N261 Band – 27.5 to 28.35

• 45.5 to 52.6 GHz
• 57.0 to 66.0 GHz
• 66.0 to 71.0 GHz
• 95.0 to 110.0 GHz

Outline Drawing
Test Data
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
