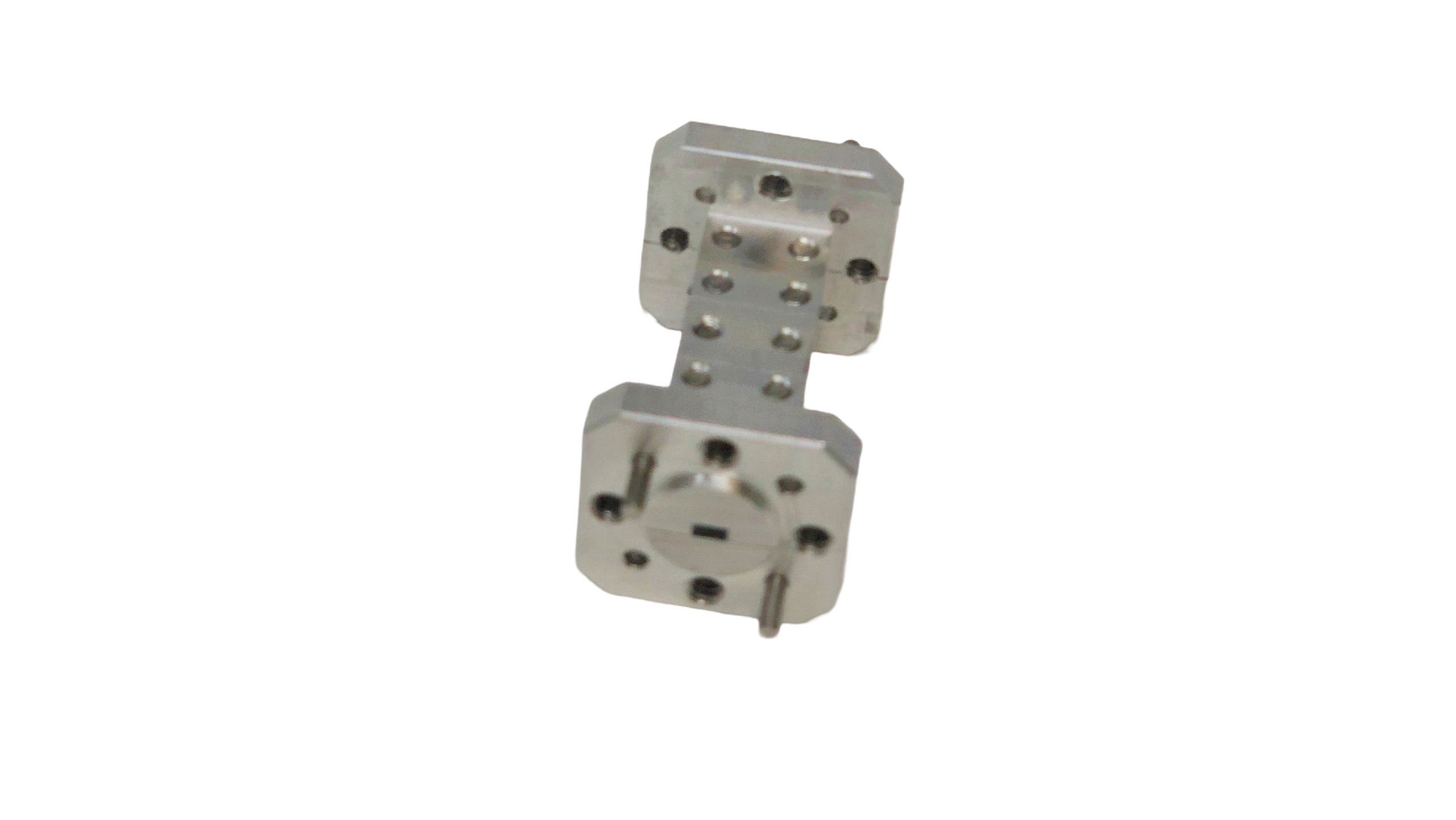

Filters > 460 Series RF Bandpass Filters > W-Band Bandpass Filter

460W-84/387, Passband Insertion Loss 2.3, Passband VSWR 1.5:1

W-Band, 84GHz – 85.5 GHz

Description:

Mi-Wave’s 460 Series Bandpass Filters are used for narrow and wideband applications. Pass bands are typically from 1% to 10%. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. Insertion losses are typically in the 0.8 dB to 2.0 dB area depending upon rejection levels. The 460 Series Bandpass filter can be designed from 8 to 140GHz. Please consult Mi-Wave for further dimensions and specific technical data.

• N257 Band – 26.5 to 29.5 GHz
• N258 Band – 24.25 to 27.5
• N259 Band – 39.5 to 43.5
• N260 Band – 37.0 to 40.0
• N261 Band – 27.5 to 28.35

• 45.5 to 52.6 GHz
• 57.0 to 66.0 GHz
• 66.0 to 71.0 GHz
• 95.0 to 110.0 GHz

Outline Drawing
Test Data
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
