Products> Isolators> Faraday Isolators> 115(34) WR-34 Isolators
Description:

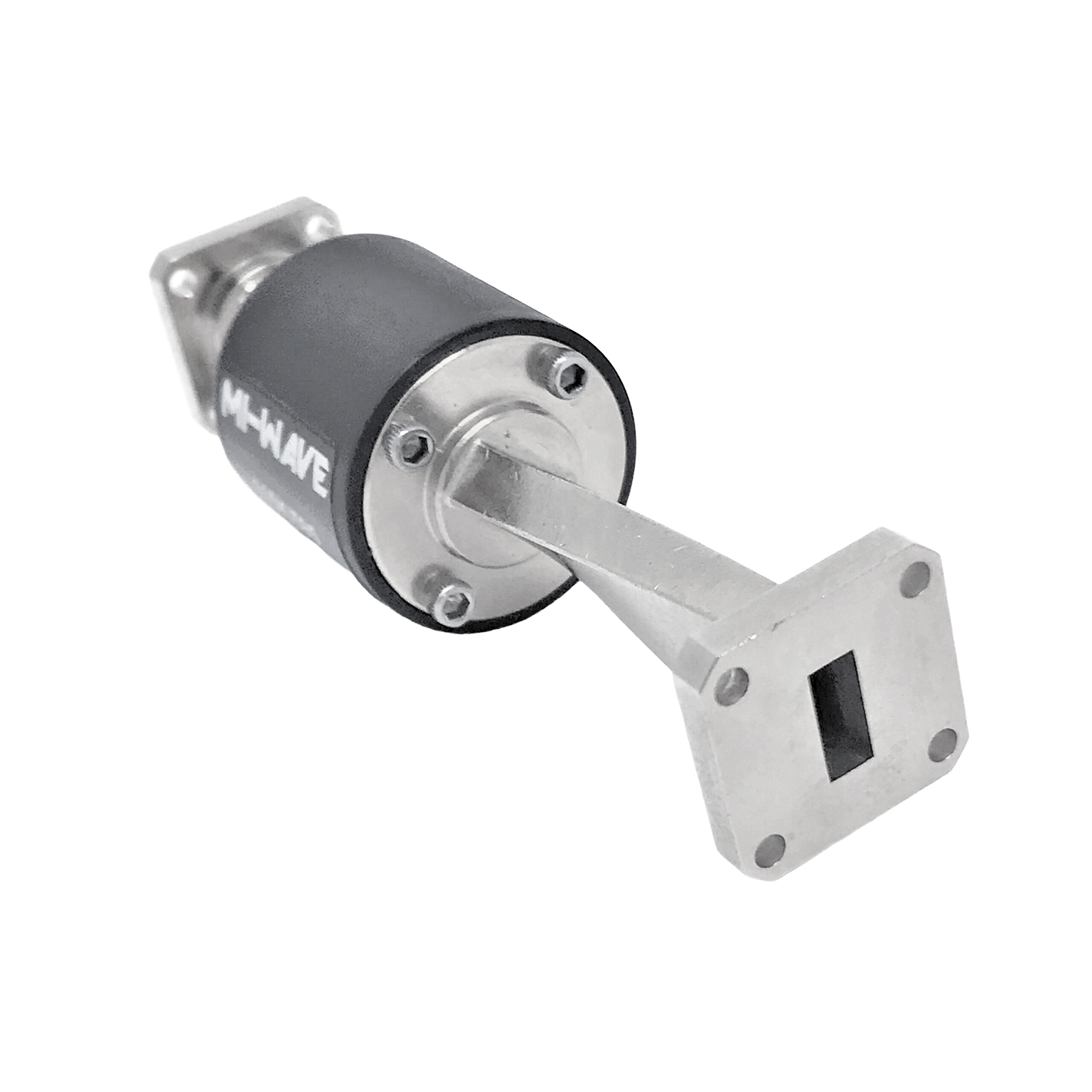

Mi-Wave’s 115 series WR-34 isolator uses the Faraday principle of rotation in a broadband dielectric waveguide design to achieve high isolation across full waveguide bands. High-quality ferrite material is used in these isolators, and the magnetic field is produced by an integral permanent magnet. To ensure maximum reproducibility and performance, a combination of precise machining operations and refined assembly techniques are used.
Features
• Low insertion loss
• Full waveguide band

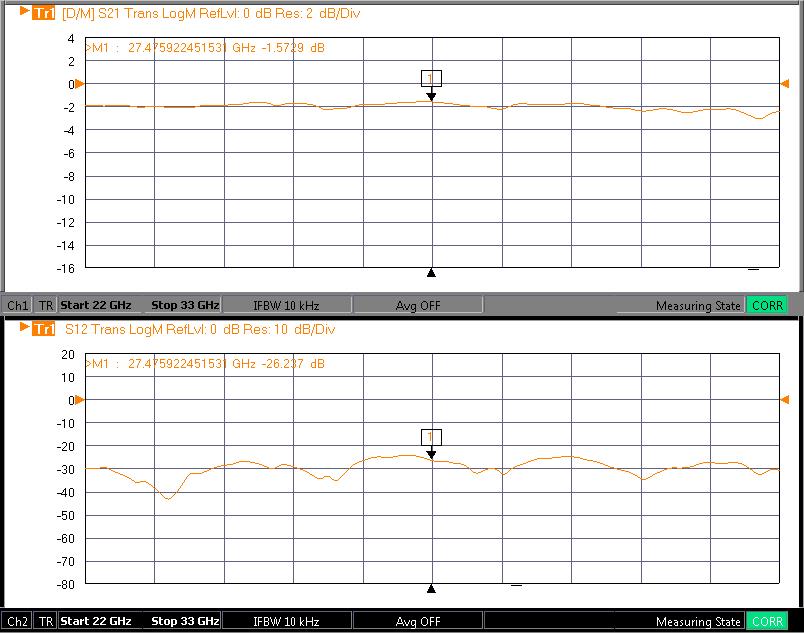

• Excellent isolation across the band
• Faraday rotation principle of operation
Applications
• Test Labs
• Sub-Assemblies
• Automotive Industry
• MMwave Test Systems
WR-34 Isolators
Our WR-34 Isolators are for the spectrum in the millimeter wave range of frequencies from 22 to 33 gigahertz (GHz).
Designed for full waveguide band operation, the 115 series WR-34 isolator is used in swept frequency applications. These components provide a high degree of isolation between signal sources and mismatched loads by attenuating the reflected signals. The insertion loss in the forward direction is minimized to allow for the full available power from the signal source-isolator combination. Typical applications for these broadband isolators include laboratory setups as well as millimeter wave test sets and automotive radar
See datasheets, outline drawings and band specific info.
Click on the links below.
